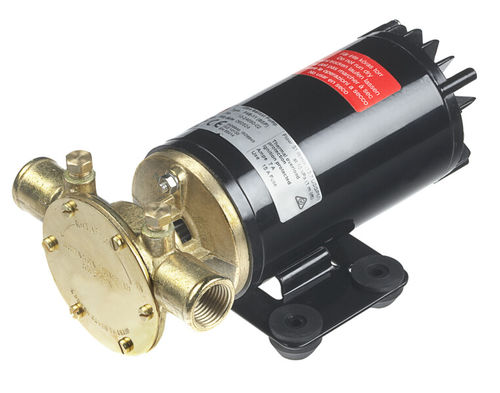

Boat pump Ultra
ballastwaterimpeller

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
ballast
Fluid
water
Technology
impeller
Operation
electric
Voltage
12 V, 24 V
Other characteristics
self-priming, reversible
Flow rate

Max.: 52 l/min
(13.74 us gal/min)

Min.: 15 l/min
(3.96 us gal/min)

Power consumption

Max.: 24 A

Min.: 12 A

Pressure

Max.: 1.5 bar
(21.8 psi)

Min.: 0 bar
(0 psi)

Weight

3 kg
(6.6 lb)

Height

90 mm
(4 in)

Length

202 mm
(8 in)

Width

120 mm
(5 in)

Description

Designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water, the pump’s robust design can handle the rigors of continuous duty usage, is reversible, and has a built-in thermal overload for added protection. Features Fresh or sea water - Important! Only for use with water. If risk of dry-running over 30 sec. use Polyurethane impeller. Heavy Duty design High Capacity 13.5 GPM Self-Priming: up to 4 m (13 ft) with MC-97/EDPM impeller; up to 1.5 m (5 ft) with Polyurethane Impeller Reversible Polarity reversing switch kit (Part No. 09-47196) available as accessory Ball Bearing Design With Bronze Head Thermal Overload (Run Dry) Motor Protection Intermittent Duty Amp draw of max 14A when pumping, up to 18A when reversing Versatile High Volume Connection Options Complies With USCG 183.410 & ISO 8846 (Ignition Protection)
