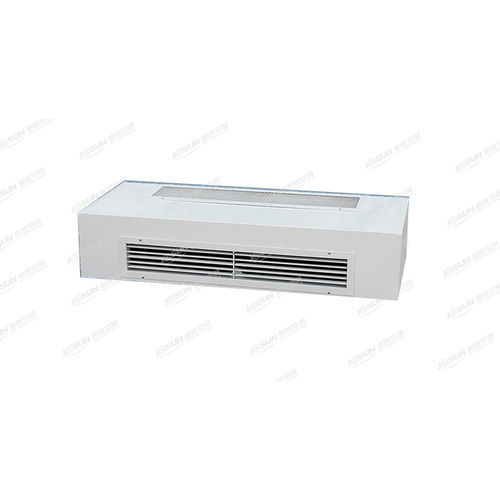

Ship fan coil unit CFP-×WM

Marine horizontal open mounted fan coil, the water pond is deepening design, return air grille, outlet grille are installed in unit. It can be used directly after lifting on cabin roof. Inlet and outlet can be set in front or behind unit, they also can be set at the bottom of unit. The arrangement is flexible, operation is convenient. Main components It is composed of efficient fin type heat exchanger, double inlet centrifugal fan, casing, water pond, return air grille, outlet grille, connection box, control panel and installation accessories, control methods include touch panel program control and knob control. Function The function is to conduct cooling and dehumidification in summer, heating in winter and ventilation in middle seasons. The fan in fan coil has high, medium, low three control steps. In summer, it takes 7℃ chilled water as cooling medium, in winter, it takes 45℃ heating water as heating medium. Advantages It has the advantages of flexible arrangement, simple operation, low noise, stable performance, convenient maintenance, long service life, etc. Basic parameters： ● cooling capacity：1700～6000kcal/h ● air flow：340～1360m3/h ● external static pressure：≈20Pa ● Power supply: standard equip AC220V 50Hz 1PH; other power source can be selected if it is needed: CK is AC230V 60Hz 1PH; VK is AC220V 50Hz 3PH; ● Control valves: two-way control valve, three-way control valve of famous brands can be supplied. ● Control method: standard equip digital display temperature controller Application： It is widely used in all kinds of passenger ships, cargo ships, pleasure boats, public service ships and warships.
