Ship blower CLQ-15~58

bilgecentrifugal

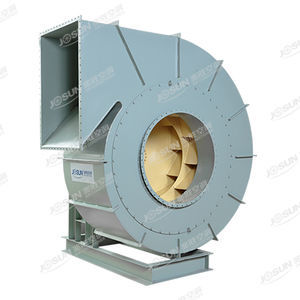

CLQ series marine centrifugal fan can supply air, the ocean air with salt mist and the corrosive air with little acid steam or oil mist; it is used on the boiler ventilation, also applicable to other proper occasion. Components The fan is made of casing, air intake, impeller and marine motor. Function It’s applicable to cabins ventilation of the vessels, boiler ventilation and some other occasions. Advantages This fan has low noise, high efficiency, small size, low weight, easy installation, high anti-corrosion, anti-shock and vibration ability, stable operation and reliable safety. Basic parameters： ● air flow：300～24000m3/h ● total pressure：200～2650Pa ● power：0.55kW~30kW ● Power supply: ：standard configuration AC 3PH 380V/50Hz，AC 3PH 440V/60Hz，can also choose：AC 3PH 415V/50Hz，AC 3PH 460V/60Hz，AC 3PH 480V/60Hz，AC 3PH 690V/60Hz. ● Casing: The fan casing is welded snail type which was made of steel plate, the volute can collect the certain speed fluid from the impeller, and change into the pressure and discharged. ● Inlet: Fan inlet made restrain type streamlined structure namely the laval nozzle shape, mounted on the side of the fan, parallel to the axial cross section for the curve shape, can make the gas well into the impeller, and less loss. ● Impeller: CLQ impeller is forward wing type, the impeller was composed by 32 or 64 anteverted blades which riveting between flat plate wheel cap and flat plate corona. The pressure and flow is large, the impeller must through serious dynamic balance and over speed test.
