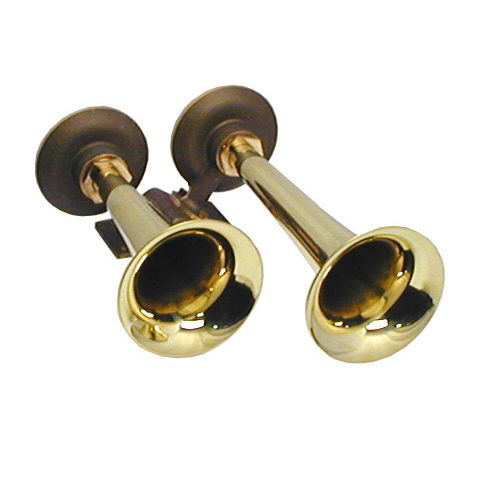

Pneumatic horn D-2

for ships 20-75 m

Designed for use on vessels up to 75 Meters in length, the Kahlenberg Model D-2 Air Horn is an extremely durable unit built for a lifetime of trouble-free service. The unique dual tone sound of the D-2 Air Horn has made it a favorite of commercial vessel operators around the world. This horn is also available as Model D-2CVL including manual/electric combination valve, air strainer, and whistle light installed.. For vessels less than 75 Meters in length Meets or exceeds IMO Requirements Low Air Consumption, operates on a wide range of air pressure Highly reliable, virtually no maintenance required All brass and bronze construction Power: Compressed Air Powered Additional Specifications: Fundamental Frequency 266 and 212 Hz S.P.L. (1/3 Octave @ 1 Meter) 29 C.F.M. @ 100 p.s.i., 8 l/s @ 7 bar Air Pressure Required 100 to 250 p.s.i., 7 to 17 bar Electrical Power Required Any standard A.C. or D.C. Voltage Material Cast Bronze and Spun Brass Net Weight 33 lbs., 15 kg. Finish None (White TGIC Powdercoat Optional) Dimensions 20.5” x 15.5” x 8.5” (524x394x217)
