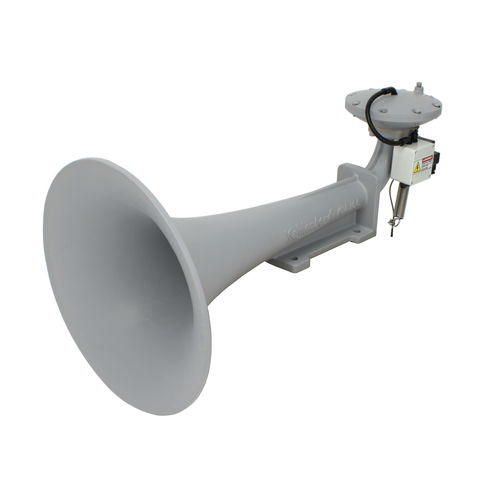

Pneumatic horn KM-165-DVM-H

for ships 75-200 m

Designed for use on commercial and military vessels over 75 Meters in length, Kahlenberg KM-165-DVM-H Air Horn IMO compliant, and is an extremely durable unit built for a lifetime of trouble-free service. A heated external combination valve assembly and heated head reduces weight, product cost, and installation costs while preserving durability and the ability to operate in the most extreme weather conditions. Ruggedly constructed to withstand the harsh marine environment Heated, thermostatically controlled combination manual override and dual electric solenoid valves (230 or 120 VAC / 24VDC) AND heated diaphragm assembly Valve assembly is field adjustable for air pressure of 5 to 40 bar (75-580 p.s.i.) Patented three piece hermetically sealed stainless steel diaphragm assembly Self draining design to prevent water condensation and corrosion Heated? - Yes Fundamental Frequency: 165 Hz Audibility Range: 2 Nautical Miles Dimensions: 864x457x457 mm (34x18x18 in) Control: Combination, 230 or 120 VAC, 24VDC (8 watts), with Manual pull Operating Temperature: -40°C to +80°C [-40°F to +176°F] Finish: Primed and painted marine grey, white optional Degree of Protection: IP56 Air Consumption: 50L/sec [106 SCFM] on 8.3 bars [120 psi] Net Weight: 17 kg (37 lbs.)
