Boat compressor KC-3NCfor yachtspistonAC
Add to favorites
Compare this product
Characteristics
- Applications
- for boats, for yachts
- Technology
- piston
- Power source
- AC
- Portability
- stationary
- Pressure
8 bar
(116 psi)- Flow
5 m³/h
(177 ft³/h)- Power
1 kW
(1 hp)- Net weight
12 kg
(26 lb)- Length
37 cm
(15 in)- Width
31 cm
(12 in)- Height
25 cm
(10 in)
Description

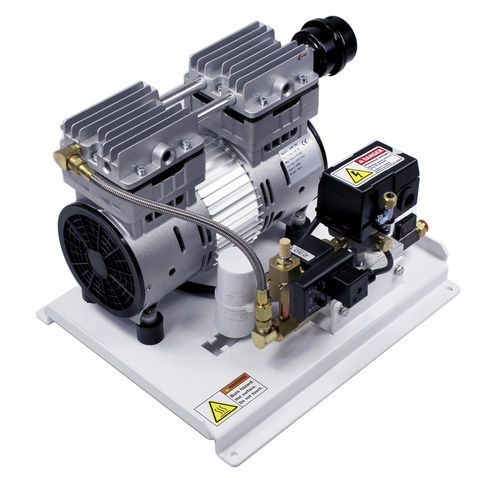

The Kahlenberg Model KC-3NC Air Compressor is an extremely quiet, compact, oil-less air compressor solution designed for marine use. The KC-3NC includes a 120 p.s.i. (8 bar) max compressor pump/pressure switch assembly that accepts simple connection of line voltage and 3/8” (10mm) O.D. air tubing. The KC-3NC is available as a stand-alone air source or in combination with Kahlenberg Air Receiver Kits which include the air receiver and all necessary accessories for a complete system installation.
Quiet Operation: 64dB(A) @ 1 meter
Low Maintenance: Oil-less, Continous Duty Operation
Simple Installation: Connect line voltage and flexible air tubing
Complete Kits Available: Including ASME Air Tank, and accessories.
Additional Specifications: -
Voltage: Single Phase A.C. Voltage 50/60 Hz
Max Current: 6.5A @120 Volts, 3.4A @ 230 Volts
FAD @ 7 bar: 3 CFM, 85 l/min
Max Pressure: 120 p.s.i., 8.3 bar
Noise Level: 64 dB(A)@ 1 meter
Thermal Protection: Yes
Duty Cycle: 100% Continuous
Vibration Isolated: Yes
