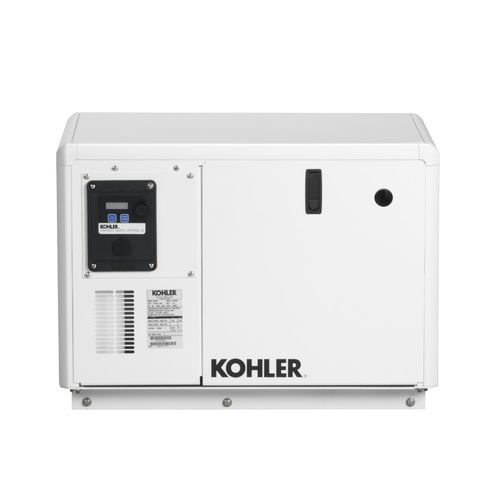

Diesel generator set 5EFKOD
for boats50 Hzsoundproofed

diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Frequency
50 Hz
Options and accessories
soundproofed
Output power

5 kW
(6.8 hp)

Voltage

Max.: 240 V

Min.: 115 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Displacement

1 l
(0 gal)

Number of cylinders

3 unit

Length

780 mm
(30.7 in)

Width

528 mm
(20.8 in)

Height

559 mm
(22 in)

Net weight

218 kg
(481 lb)

Description

Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards. Closed cooling system Heat exchanger Oil drain valve GENERATOR FEATURES Remote start 12-pin connector Voltage regulation of ±1.0% Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas. Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation. Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
