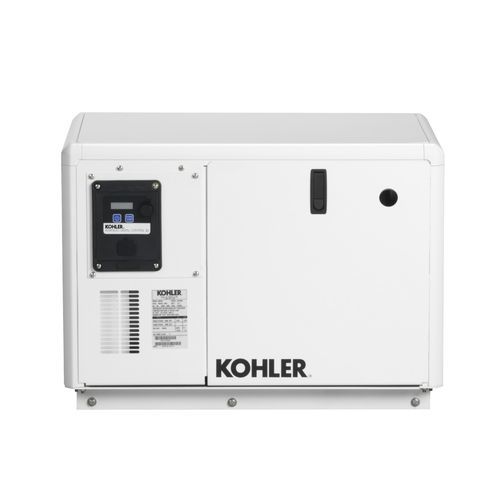

Diesel generator set 9EKOZDfor boats60 Hzsoundproof
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Application domain
- for boats
- Frequency
- 60 Hz
- Options and accessories
- soundproof, with alternator
- Output power
9 kW
(12.2 hp)- Voltage
Min.: 120 V
Max.: 240 V
- Rotational speed
1,800 rpm
(11,310 rad.min-1)- Displacement
1 l
(0 gal)- Number of cylinders
3 unit
- Length
865 mm
(34.1 in)- Width
528 mm
(20.8 in)- Height
559 mm
(22 in)- Net weight
245 kg
(540 lb)
Description
Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
Closed cooling system
Heat exchanger
Oil drain valve
GENERATOR FEATURES
Remote start 12-pin connector
Voltage regulation of ±1.0%
Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
Catalogs
9EKOZD 60 Hz / 7EFKOZD 50 Hz
4 Pages
