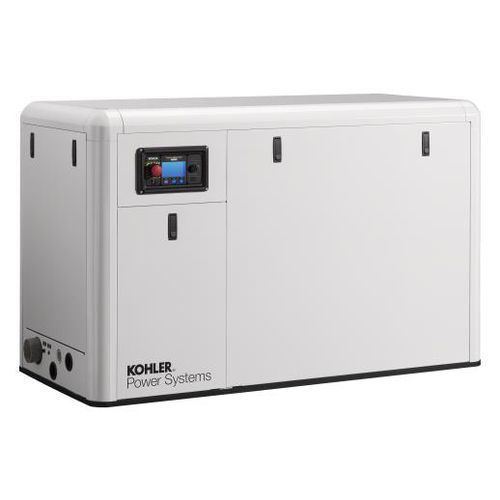

Diesel generator set 33EFOZDJfor yachts50 Hzsoundproof
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Application domain
- for yachts
- Frequency
- 50 Hz
- Options and accessories
- soundproof, with alternator
- Output power
33 kW
(44.9 hp)- Voltage
Min.: 110 V
Max.: 416 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Displacement
5 l
(1 gal)- Number of cylinders
4 unit
- Length
1,633 mm
(64.3 in)- Width
767 mm
(30.2 in)- Height
1,015 mm
(40 in)- Net weight
1,000 kg
(2,205 lb)
Description
Engine is Environmental Protection Agency (EPA) Tier II compliant
One-side serviceability of fuel system, lubrication system, and air cleaner
PTO options: SAE C-splined 12- or 24-volt electric clutch
GENERATOR FEATURES
Prime power rated
Superior KOHLER Fast-Response X ™ PMG generator ends
Class H insulation
12-lead reconnectable alternator
The generator complies with NEMA, IEEE, and ANSI standards for temperature rise.
The alternator uses a permanent-magnet, Fast-Response® excitation system.
The alternator has a two-thirds pitch stator and skewed rotor.
