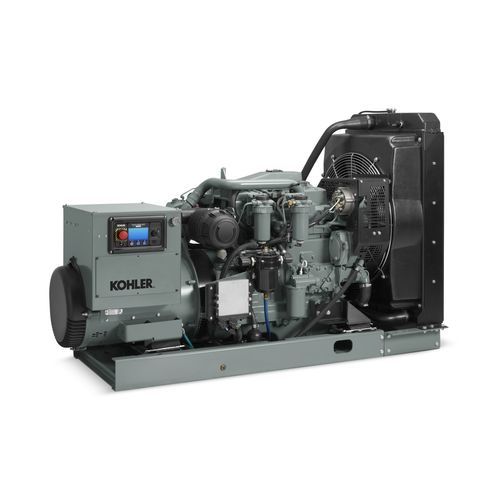

Diesel generator set 55EOZCJfor yachts60 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Application domain
- for yachts
- Frequency
- 60 Hz
- Output power
55 kW
(74.8 hp)- Voltage
Max.: 480 V
Min.: 120 V
- Rotational speed
1,800 rpm
(11,310 rad.min-1)- Displacement
5 l
(1 gal)- Number of cylinders
4 unit
- Length
1,884 mm
(74.2 in)- Width
827 mm
(32.6 in)- Height
1,465 mm
(57.7 in)- Net weight
957 kg
(2,110 lb)
Description
Engine is Environmental Protection Agency (EPA) Tier III compliant
One-side serviceability of fuel system, lubrication system, and air cleaner
PTO options: SAE C-splined 12- or 24-volt electric clutch
GENERATOR FEATURES
Prime power rated
Superior KOHLER Fast-Response X ™ PMG generator ends
Class H insulation
12-lead reconnectable alternator
The generator complies with NEMA, IEEE, and ANSI standards for temperature rise.
The alternator uses a permanent-magnet, Fast-Response® excitation system.
The alternator has a two-thirds pitch stator and skewed rotor.
