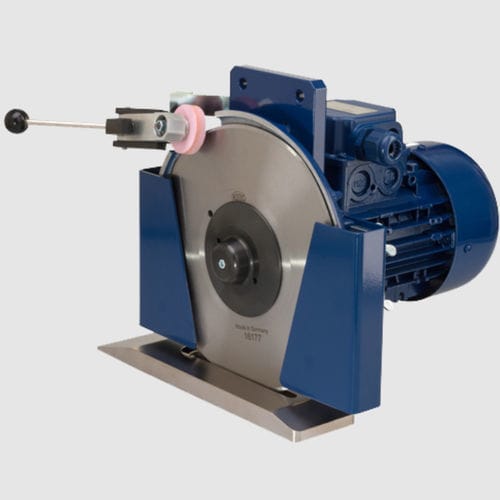

Rotary-knife cutting machine KSM 200L Q L/R

electricfabricfor shipyards

Edge and middle cutters for special applications, individual customer solutions or special machine construction. KSM 200 in left-hand and right-hand design The KSM 200 machines have a rotating blade made from tool steel, a grinding device with two sharpening edges and no base plate. We recommend the rotating blade in HSS quality for certain types of cut. You can distinguish between left and right by looking at the machine from the side of the blade. If the grinding device is located on the left, this is a left-hand version. If the grinding device is located right, this is a right-hand version. KSM 200 L in left-hand and right-hand version The „L“ stands for lengthways cutter. Even this machine is constructed in a left- and right-hand version, i.e. for use as a pair for trimming endless fabric etc. The KSM 200 L possesses an HSS quality four-arc blade, a co-ordinated unilateral grinding device and a base plate with counter blade, i.e. it can only cut in one direction. KSM 200L Q The „Q“ stands for cross cutter. This machine also has an HSS quality four-arc blade, unilateral grinding device and, in contrast to the KSM 200 L model, a base plate with two counter blades, enabling the KSM 200 Q model to cut in both directions. TECHNICAL DATA Motor power: - - 0,37 kW Cutting height, max.: - - 22 mm with protection 40 mm without protection Blade diameter: - - 200 mm Weight: - - 9,5 kg
