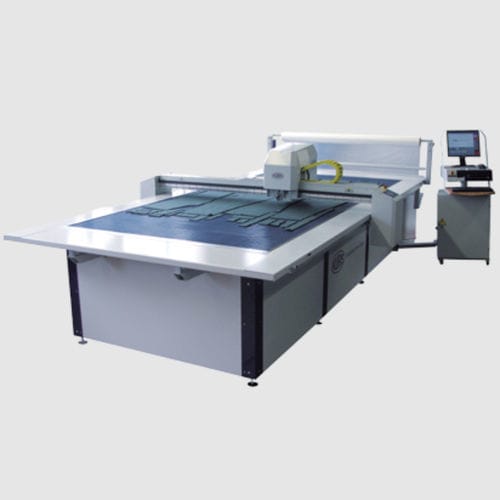

CNC cutting table SK 25

conveyorfor shipyards

The SK25 from Kuris Spezialmaschinen offers all advantages of a fully automatic CNC Cutter with a very attractive value for money. Due to the small dimensions of the cutter, the Starter Kit is ideal for small spaces. Sample cuts, small or medium sized series – the Starter Kit from Kuris is the perfect solution, if flexibility, efficiency and accuracy is required for a very convenient price. Based on the established Kuris Technology, this system offers all features, that can also be found at large cutting systems. The cutting height of the Starter Kit with up to 25 mm provides a wide field of applications. The cutting window with the dimensions 1,60 m x 3,40 m offers enough space for most cutting orders while the table dimensions are still very compact. It can be extended with modules of 2,40 m. The Starter Kit is the perfect system, if easy, fast and economic solutions are required. TECHNICAL DATA: Cutting table: - - Static Max. Cutting height: - - 25 mm Working width (Y): - - 1,60 m / 2,00 m Total width (incl. bridge): - - 2,50 m Working length (X): - - 3,40 m + 2,40 m modules Total length: - - 4,75 m Max. Cutting Speed: - - 40 m/min Max. Positioning Speed: - - 70 m/min Max. Acceleration: - - 4 m/s² Cutting head: Knife size: - - 2 x 6 mm Tools: - - Drilling device, Drawing device Power requirements: Operating voltage: - - 400 V, 50/60 Hz Controls / Drive: - - 2,5 kW Vacuum Unit: - - 7,5 kW / 11 kW Total main power: - - 10 kW Fuse: - - 25 A Protection class: - - Class 1 Compressed air (5-6 bar): - - 10 l/min, 180 l/min (for drilling device) Weight: - - ca. 1.500 kg Working height: - - 0,85 m
