Weir oil skimmer LBA-Q-series

multi-brushcircular

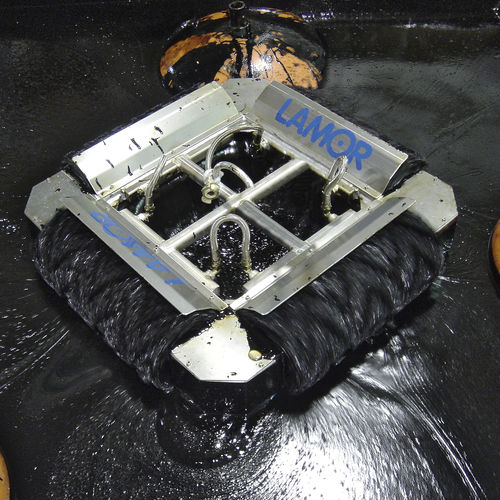

The Lamor Brush Adapter Quattro LBA-Q-series are brush-wheel oil recovery modules designed to fit quickly and easily onto the hopper of the Lamor Weir Skimmer 500/800. The purpose of the device is to improve the overall recovery efficiency (reduce free water recovered with oil) and to improve the performance in very high viscosity oils. The LBA-Q’s have four banks of brush wheels, which rotate downward into the oil layer creating a strong inflow. The LBA-Q brush banks are mounted within a sturdy aluminum frame with a center-lifting eye. The brushes are driven by two hydraulic motors, which are powered by a single hydraulic circuit. The brush adapter can easily be installed on the Lamor LWS skimmer hopper in place of the weir bellow and is secured with stainless steel clamps. The recovery capacity of the LBA Q 500 is certified by Bureau Veritas at 61.1 m³/h (269 GPM). The recovery capacity of the LBA Q 800 is certified by Bureau Veritas at 81.5 m³/h (359 GPM).
