Brush oil skimmer MicroMax

Brush oil skimmer - MicroMax - LAMOR
Brush oil skimmer - MicroMax - LAMOR
Brush oil skimmer - MicroMax - LAMOR - image - 2
Brush oil skimmer - MicroMax - LAMOR - image - 3
Brush oil skimmer - MicroMax - LAMOR - image - 4
Add to favorites
Compare this product


Characteristics

Type
brush

Description

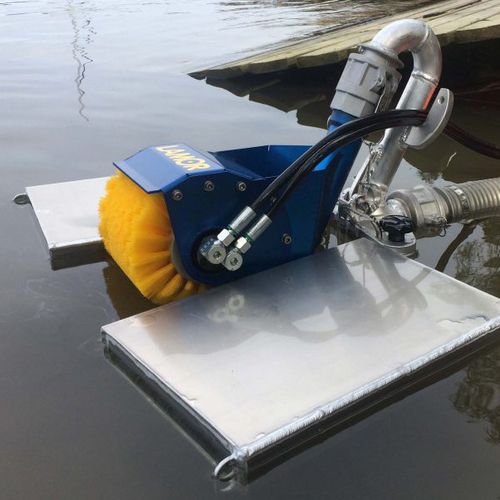

The MicroMax Floating Skimmer, which uses the proven Lamor brush skimmer technology, consists of a frame with two floats.The MicroMax Skimmer is designed to separate oil from water and especially remove oil from tanks or pits. The recovered oil is lead into a hopper behind the brush wheel, and from where the oil is sucked using a separate suction pump. The MicroMax is manufactured from aluminum and weighs only 11 kg (24 lbs). The skimmer can be lowered to skimming position through a manhole of approx. 550 mm diameter.The skimmer is entirely hydraulically operated and its power requirement is low. The unit is designed to be connected to a suction pump or vacuum system. Our preferred solution is the Lamor LPP 6 HA C75 hydraulic power pack with a built- in Spate 75 pump. Length - 550 mm / 21.7 in Width - 700 mm / 27.6 in Height - 350 mm / 13.8 in Weight - 11 kg / 24 lbs Capacity - 10m3/h / 45 gpm Hydraulic flow - 1-3l/min / 0.3-0.8 gpm Hydraulic pressure - 60-100 bar / 870-1450 psi Power - 0.5 kW / 0.7 hp
