Weir oil skimmer LMS 115/140

brushdisc

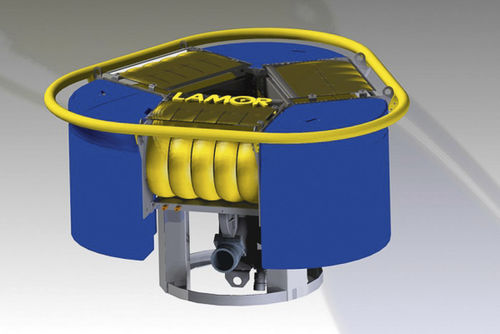

The Lamor Multi Skimmer LMS 115/140 is a flexible high capacity free-floating skimmer, which is designed with the interchangeable brush, disc, and drum modules in a triangular configuration, suitable for a variety of different oil spill recovery scenarios. The LMS 115/140 is designed to recover oil from harbors and nearshore but also offshore. With all its options, the LMS 115/140 provides the user with several skimming options ranging from brush, disc, and drum. The LMS 115/140 consists of four main components, aluminum weir and brush frame, fiberglass floats and 3 brush banks. Brush banks can be changed to disc or drum. For use in arctic areas, the skimmer unit can be equipped with the heating coil. The skimmer utilizes the Lamor brush wheel technology, which combines high oil recovery capacity with a low free water pick-up rate. The skimmer is entirely hydraulically operated and its power requirement is low. The unit is intended to be used with a Lamor GTA 115 or 140 pump. Each brush wheel has a certified skimming capacity of 90.5 m³/h (398 gals/min) according to ASTM 631-99 standard, certified by Bureau Veritas. The brush modules gain the highest recovery capacity of all oils, and the disc and drum modules are effective for the recovery of light to medium oils. Length - 1565 mm / 62 in Width - 1645 mm / 65 in Height - 1384 mm / 54 in Weight - 160 kg / 353 lbs Draft - 900 mm / 35 in Capacity - 271.5 m3/h / 1195 gpm Free water collected - <5% Hydraulic flow (skimmer) - 10l/min / 2.6 gpm Hydraulic pressure - 150 bar / 2175 psi Power - 2.5 kW / 3.3 hp
