Containerized furler / anti-pollution boom LHR L 1815

trailerable

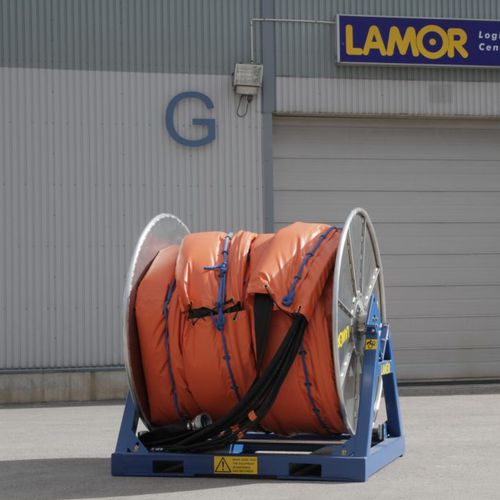

The Hose Reel Swivel LHR L 1815 9 channel Swivel together with the Lamor 80 m (262 ft) hose package is an effective unit for hose handling of medium, large and offshore skimmers on vessels or barges. With the integrated swivel, the skimmer can be powered by hydraulics in use during deployment and retrieval without having all the hoses deployed from the reel. The reel frame is manufactured from high-quality marine-grade coated steel. The spool is made of marine-grade aluminum and has an integrated nine hydraulic channel stainless steel rotary swivel. The spool is rotated with a high torque hydraulic motor gear package. The reel can be lifted securely from the forklift channels or from the dedicated lifting points located on the frame. The reel is designed to fit inside a container and can be locked and secured by either the dedicated lashing points or the built-in ISO container corners. The reel can be fitted with a rotation control valve on the reel (optional, not included). The hose package consists of nine hydraulic lines and discharge hoses that are wrapped in a PVC covered hose float. The horse float can easily be opened and closed for maintenance. Length - 2020 mm / 80 in Width - 1840 mm / 72 in Height - 2035 mm / 80 in Weight - 650 kg / 1433 lbs Weight w/ 80 m hose - 1680 kg / 3703 lbs Spool width - 1500 mm / 59 in Hose length - 80 m (5 in) / 262 ft (5 in) Hydraulic flow - 15 l/min / 4gpm Hydraulic pressure - 210 bar / 3045 psi Power - 5.3 kW / 7.1 hp
