Led strip was built with Honglitronic leds, version HL-AM-2835H421W-S1-08-HR3-3SDCM. The 3step LED allows to install or replace LED strips having the same colour temperature without seeing different shades of colour even for different product batches. For further information please consult LED datasheet.

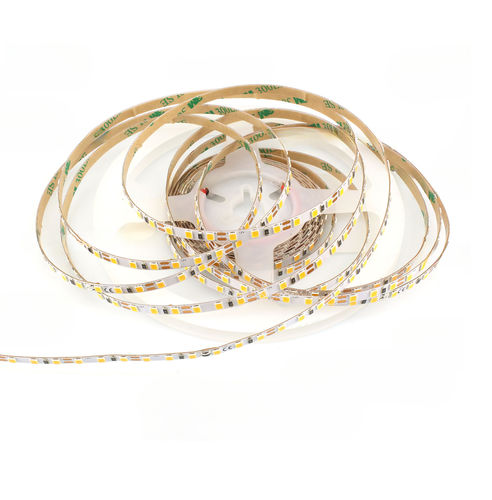

The led strip F52-27s-120821-W5 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
Lumens: 1050 lm/m
Efficiency: 117 lm/W
Strip LED colour temperature: 2700K 3step
Dimmable LED strip with 600 led (120 led/m)
Input voltage 12V (+0%, -15%), power consumption 50W (10 W/m)
Led strip cuttable every 3 leds (every 2,5cm). Length 5 m, width 5 mm, height 1,5 mm
PCB colour: White
Double sided adhesive tape type: 3M 9495LE
10 cm power input cables on both sides of the strip
Working temperature: -10°C ~ +50°C
IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.
Water protection - IP20 (no)
Voltage - 12V
Power consumption per meter - 10 W
Leds per meter - 120
Led model - 2835
Light colour - Warm white
PCB width - 5 mm
Cut point - 2,5 cm
Length - 5 m
Colour rendering - CRI Ra>80
