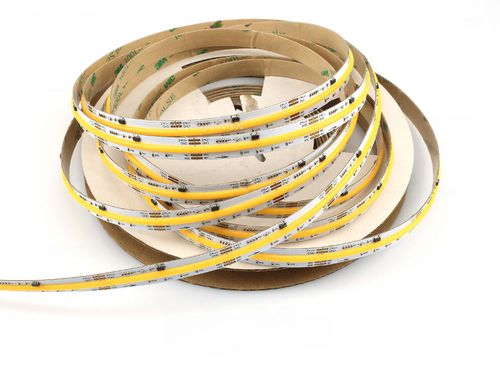

Indoor light strip F52-Co300-320OS2
for boatscabinLED

indoor light strip
indoor light strip
indoor light strip
indoor light strip
indoor light strip
Add to favorites
Compare this product


Characteristics

Type
indoor
Application domain
for boats
Applications
cabin
Light source
LED
Mounting
PCB
Other characteristics
flexible

Description

LED strip with COB LED and 1934 IC control chip. These strips can be used only with the specific controller. LED control strips are controllable on a pixel-by-pixel basis using dedicated controllers. A pixel corresponds to the single cut of the strip. The led strip F52-Co300-320OS2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces. Tech specs: Strip LED colour temperature: 3000K Dimmable LED strip with 1600 led (320 led/m) Input voltage 24V (+0%, -15%), power consumption 55W (11 W/m) Led strip cuttable every 16 leds (every 5cm). Length 5 m, width 8 mm, height 2 mm PCB colour: White Double sided adhesive tape type: 3M 9495LE 10 cm power input cables on both sides of the strip Working temperature: -10°C ~ +45°C Water protection - IP20 (no) Voltage - 24V Power consumption per meter - 11 W Leds per meter - 320 Led model - COB Light colour - Warm white, Magic Strip PCB width - 8 mm Cut point - 5 cm Length - 5 m
