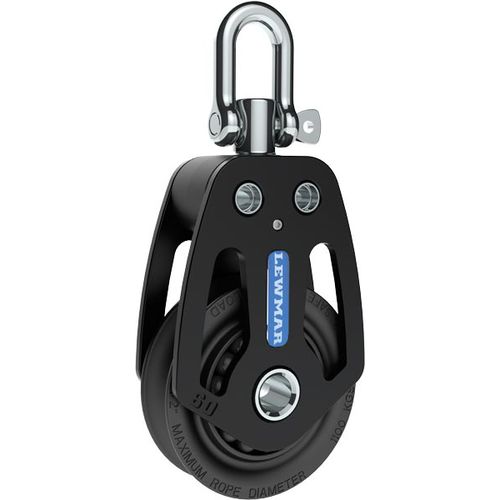

Single block HTX seriescheekwith swivelwith shackle
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- single
- Type
- cheek
- Configuration
- with swivel, with shackle
- Bearing type
- plain bearing
- Maximum line diameter
- max. rope ø 12 mm, max. rope ø 10 mm, max. rope ø 14 mm, max. rope ø 16 mm
- Application domain
- for sailboats
- Working load
800 kg, 1,100 kg, 2,000 kg, 3,500 kg
(1,763.7 lb, 2,425.1 lb, 4,409.2 lb, 7,716.2 lb)
Description
Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Features
Strong aluminium side cheeks
Central plain bearing for efficiency at high loads
Side thrust delrin ball bearings
Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
