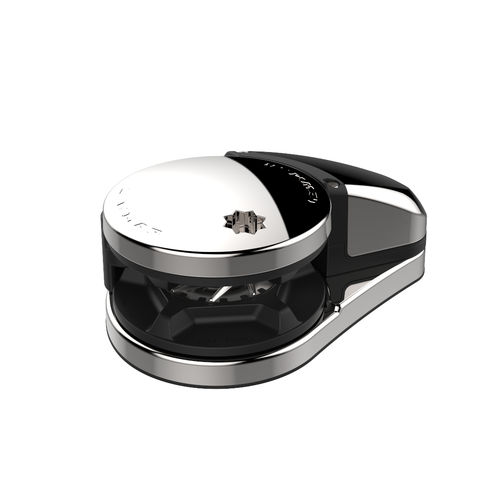

Electric windlass VX2
boatverticalabove deck

Electric windlass - VX2 - LEWMAR - boat / vertical / above deck

Electric windlass - VX2 - LEWMAR - boat / vertical / above deck - image - 2

Electric windlass - VX2 - LEWMAR - boat / vertical / above deck - image - 3

Add to favorites

Compare this product

Go to the LEWMAR website for more information

Characteristics

Operation

electric

Application domain

boat

Mounting

vertical

Set-up

above deck

Working load

Min.: 213 kg
(470 lb)

Maximum pull

850 kg
(1,874 lb)

Engine power

Max.: 900 W
(1 hp)

Min.: 700 W
(1 hp)

Power supply

Min.: 12 V

Amperage

Max.: 120 A

Min.: 60 A

Chain diameter

Max.: 10 mm
(0 in)

Min.: 6 mm
(0 in)

Boat length

Max.: 35'00"
(11 m)

Min.: 25'00"
(8 m)

Weight

14 kg, 15 kg
(31 lb, 33 lb)

Anchoring speed

Min.: 30 m/min

Description

Optimised for boats up to 48ft, the VX2/3 offers a maximum pull of 1175kg showing great performance and value. Built from the same principles of strength and durability as the V series, the VX2/3 units feature the same level of weight and performance optimisation as the VX1. The Hybrid Gypsy offers extended endurance under all conditions. The VX2 offers a maximum pull of 850kg, offering great performance and value for the 30ft to 48ft market range. 4 gypsy options to choose from 6/7mm1/4’’, 8mm 5/16” , 10mm DIN & 10mm ISO Motor range 700w 12v & 900w 24v VX2/3- Robust worm wheel gearbox Stylish stainless steel and composite construction IP67 cover as standard Same footprint as V2/3 models
