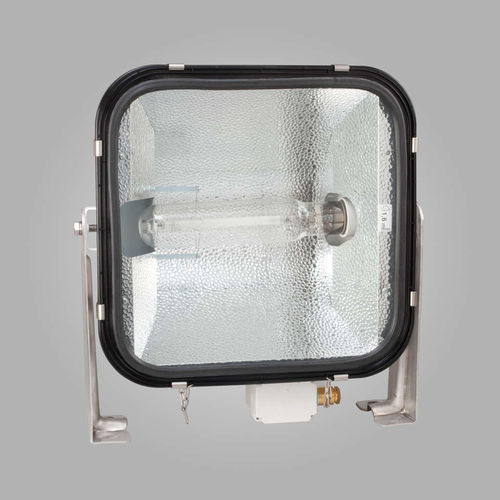

Deck floodlight ST76

for shipsincorporated ballast

Part no. Wide beam 5101001101-001 Narrow beam 5101001101-002 Design According to rules of maritime classification societies and relevant standards Housing Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, powder coated white (RAL9016) Cover Tempered glass, DIN 12150 Mounting Stainless steel brackets, adjustable Reflector Aluminium anodized, wide or narrow beam angle Cable entry Junction box, cable gland brass with earthing insert Ballast Ballast unit VG76 has to be ordered separately Wiring Flexible wiring, high temperature resistant Protection class IP67 Weight 11.1 kg Light source HST/HIT lamp (not included) Lamp base E40 Wattage 1x 1000 W Voltage 230 V AC Frequency 50 Hz or 60 Hz
