Electric windlass SX5
hydraulicfor boatsvertical

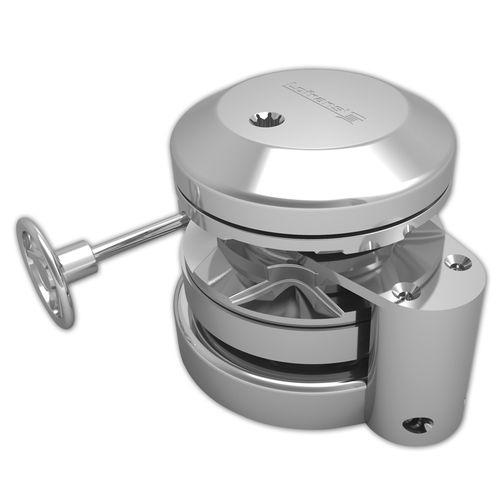

Electric windlass - SX5 - Lofrans - hydraulic / for boats / vertical
Electric windlass - SX5 - Lofrans - hydraulic / for boats / vertical
Electric windlass - SX5 - Lofrans - hydraulic / for boats / vertical - image - 2
Add to favorites
Compare this product


Characteristics

Operation
electric, hydraulic
Application domain
for boats
Mounting
vertical
Set-up
above deck
Number of drums
single-drum
Function
stainless steel base
Working load

680 kg, 760 kg
(1,499 lb, 1,676 lb)

Maximum pull

2,500 kg, 2,800 kg
(5,512 lb, 6,173 lb)

Engine power

3,000 W
(4 hp)

Power supply

24 V

Amperage

210 A

Description

Luxury stainless steel base and drum Independent gypsy and drum operation Manual chain release Manual override Chain counter magnet pre-installed as standard Anodised marine aluminium gearbox Heavy-duty electric motor Chain pipe available as an option Standard Equipment: Dual direction solenoid pack Handle Gypsy for chain CD / Instruction manual Chain pipe also available as an option, code 636314 Product Information & Specs The standard features that you can meet in every SX series windlass are: Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market. The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly. The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance. There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter. Compact round base design constructed with Marine AISI 316L Stainless Steel
