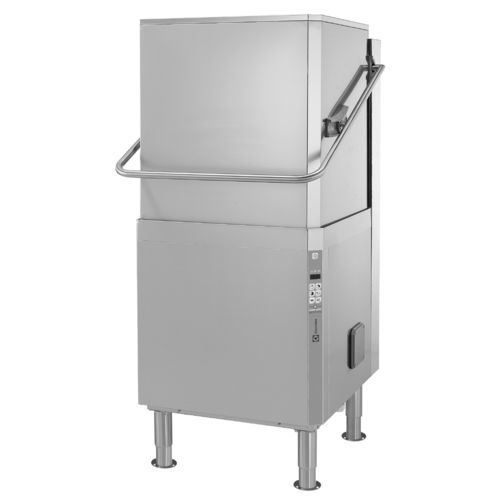

Ship dishwasher EHT8M

hood

The model can operate either in High Productivity mode or in Sanitation mode and has three wash cycles - for lightly, normal or heavily soiled dishes. Built-in atmospheric boiler sized to raise incoming water to a minimum of 84 °C for sanitising rinse. Unique temperature interlock guarantees required temperatures in both the wash and final rinse. Built-in rinse aid dispenser with automatic initial and continuous cycle loading for the perfect result while minimising service and maintenance needs. Slanted wash arms to avoid detergent-filled wash water dripping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results. The model has an automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation. For connection to hot water 80 baskets/hour capacity Single Skin Hood Low water and detergent consumption Electronic system control Built-in atmospheric boiler Automatic self-cleaning cycle Installation for straight or corner flow installation General specifications BASIC INFORMATION CAPACITY (RACKS/H) 80 CYCLE TIME (S) 45 ELECTRONIC CONTROL Yes WATER CONSUMPTION (L/CYCLE) 2 TECHNICAL DATA HOT WATER INLET TEMPERATURE (°C) 50 NOISE LEVEL <(DB) 63 RINSE TEMPERATURE (°C) 84 TEMPERATURE, MAX (°C) 84 WATER PRESSURE, MAX (BAR) 7 WATER PRESSURE, MIN (BAR) 0,5 ELECTRIC DATA PHASE 3 DIMENSIONS WIDTH, NET (MM) 746 DEPTH, NET (MM) 755 HEIGHT, NET (MM) 1549
