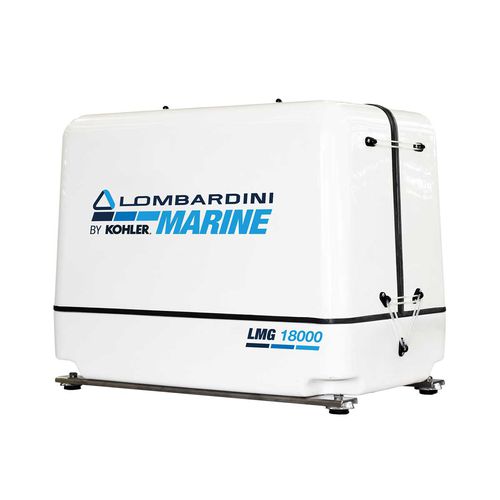

Diesel generator set LMG18000

for boats50 Hzsoundproofed

ENGINE The models LMG 9000/14000/18000 are equipped with the FOCS (fully overhead controlling system) series engines, known for their compactness, low noise, low pollution emissions and absence of vibrations. ALTERNATOR The alternator is a synchronous type without brushes with the windings on the stator. Thanks to the AVR system, the delivered voltage is constant between zero and the rated output. COOLING The FULL WATER cooling system includes both the engine and the alternator; the sea water cools, through a special circuit, the fresh water in the engine, the oil and the external walls of the alternator’s stator. REMOTE CONTROL BOX The generator set is supplied with a remote control box and 15 m of plug-in cable. An automatic shutdown operates in case of oil pressure and water temperature failure, warning lights indicate high water temperature, low oil pressure. A display indicates output voltage, output current, engine battery low voltage and runtime hours. On request an additional control box is also available.
