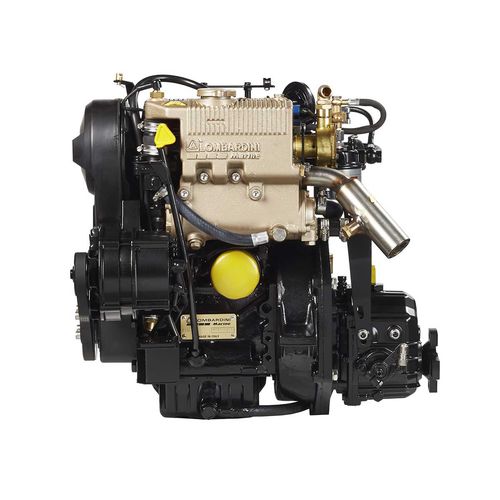

Inboard engine LDW702M
dieselboatingwater-cooled

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Cooling system
water-cooled
Power

18 ch
(18 hp)

Displacement

686 cm³
(23 US fl oz)

Number of cylinders

2 unit

Engine speed

3,600 rpm
(22,619 rad.min-1)

Bore

75 mm
(3 in)

Stroke

77.6 mm
(3.1 in)

Length

560 mm
(22 in)

Width

488 mm
(19 in)

Height

522 mm
(21 in)

Weight

99 kg
(218 lb)

Description

This series of exceptionally light and compact engines, features very high reliability in every condition; furthermore, this specific project has been carried out in order to optimize durability and low fuel consumption without reducing the performance of the engine. 4 stroke marine diesel engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M), fresh water cooled via heat exchanger, complete with zinc anode protection; cast-iron engine block (aluminium for LDW 502 M); reborable liners; one piece aluminium cylinder head; indirect injection with unit injector pump in the cylinder head; overhead camshaft with timing belt; vane type lubrication pump on crankshaft; fresh water cooling pump in the engine block; stainless steel water injected exhaust elbow; self-priming sea water pump; air filter; anti-corrosion surface treatment.
