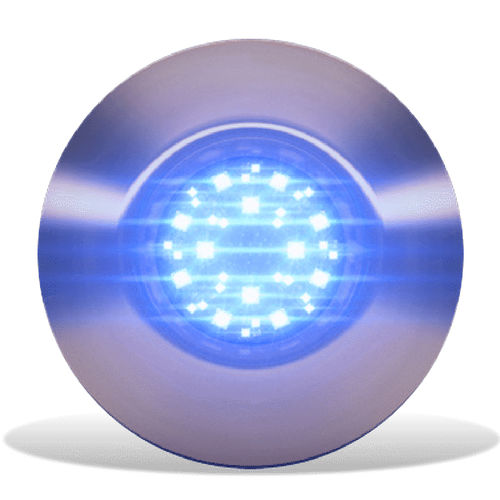

Lumishore's TIX403 is a dual-color, full power underwater LED light that produces 7,400 fixture lumens and an ultra-wide 110° beam angle!
Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.
Suitable for transom, side and bottom mounting.
SPECIFICATIONS
AVAILABLE LED COLORS:
DUAL COLOR (BLUE & WHITE)
LUMENS:
16,650
VERIFIED FIXTURE LUMENS (WHITE):
7,400
# OF HIGH POWER LEDS:
36
LED POWER - HICOB ARRAY:
YES
TYPICAL LED LIFE:
50,000+ HOURS
BEAM ANGLE (DEGREES):
110°
DRIVER:
Multi-Channel Internal Driver
SUPPLY VOLTAGE:
12/24 V DC (AC option available)
MAX CURRENT DRAW (12/24):
6.4/3.2A
HOUSING TYPE:
MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS:
i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE
LIGHTS SYNCHRONIZED:
Y
BRIGHTNESS ADJUST:
Y
WHITE:
Y
BLUE:
Y
STROBE:
Y
SYNCHRONIZED STROBE:
Y
FADE MODE:
Y
SYNCHRONIZED FADE MODE:
Y
