Ship steering system JumboZ-2800

electro-hydraulic

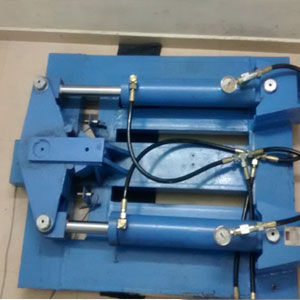

Model : JumboZ-2800 is planned for heavy in-board vessels like 1.Heavy Barges 2.Mini Ships TECHNICAL SPECIFICATION Specification - JumboZ-2800 Hydraulic Actuator Ram Size(mm) - 50X2 Nos Hydraulic Actuator Thrust (Kgf)) - 9590@ 70kg/cm2 Hydraulic Actuator Torque with Tiller Arm of 300mm (kg.m) - 2800 Hydraulic Actuator Stroke(mm) - 440 Tiller Arm Type - Double Ended Tiller Arm Turn - Upto45 ° both sides Steering System - Steering Wheel/Joy Stick Emergency Manual Steering - Optional Low Pressure Alarm - Optional Temperature Alarm - Optional Port/Starboard End Alarm - Optional Rudder Position Indicator - Optional Electro/Engine Driven Hydraulic Powerpack In Electro/Engine drive system, an Electric Motor driven / Engine Driven Powerpack, is providing the pressurised oil to the system. Hydraulic pump is coupled to a shaft, driven by Engine/Electric Motor This type of Electro-Hydraulic Powerpack Driven by Electric Motor, are used in Heavy Barges and Mini Ships, where Generators are used to power the steering system Photograph below shows a typical Engine Driven Powerpack fitted in a fishing vessel, with sea-water cooled oil cooler. Pair of Semi-Balanced Hydraulic Steering Actuators A Pair of Semi-Balanced Hydraulic Linear Actuators are planned, to turn the tiller-arm to both sides of the vessel, smoothly and precisely. Oil supply ports are provided on both sides of the these actuators, through which
