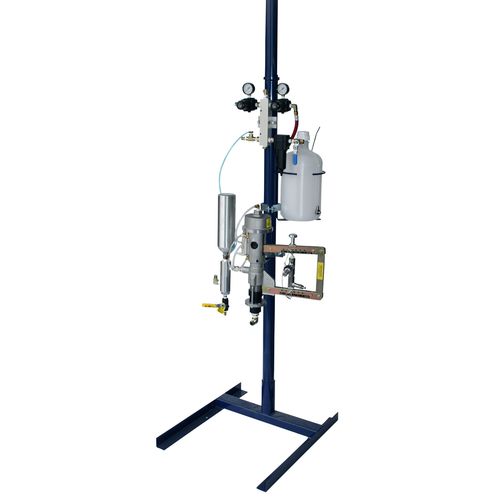

Resin spraying machine MINIPRO

simultaneousfor shipyards

MVP’s Chop/Wetout Equipment features the Pro System with reliable low pressure delivery, easy setup, easy operation, and easy maintenance. The Pro pumping system utilizes a heavy duty stainless steel catalyst pump, allowing the operator to adjust the preferred setting with ease. Catalyst settings can be made with a simple pin adjustment. Designed to handle low-to-moderate volumes, the MiniPro Chopper is ideal for converting from hand lay-up to mechanization when the high-volume capacity of the UltraMAX™, or Patriot™ systems are not required. All Pro Series Choppers use the V-Pro 2000 highspeed reversing valve to ensure smooth changeover from top to bottom stroke. The ATC-4000 Gun is recommended for this system. Available in Internal & External Mix configurations. PRO CHOP/WET-OUT SYSTEM Specifications: Output Capabilities: approximately 1-5 lbs./min. (.45 – 2.3 kg/min.) Catalyst Percentage: 0.5% to 3% by volume Air Consumption: 12 CFM (340 L/min.) Pump Ratio: 4:1 & 11:1 Maximum Air Input Pressure: 100 psi Options: CFH-2000 CB-8000 Monitor CTS-9000 Catalyst Alarm QUICK SHOT PAIL DISPENSE SYSTEM Achieve excellent resin & catalyst metering while dramatically lowering material and labor costs normally associated with bucket and brush applications with the Quickshot. Dispense resin and catalyst quickly and more evenly with little clean-up and lower emissions. Features of this system include: Accurate ratios without the hassle No drip, easy-to-use ball valve opens resin and catalyst flow precisely and evenly No accumulators to charge, and no gun to flush Simple to operate
