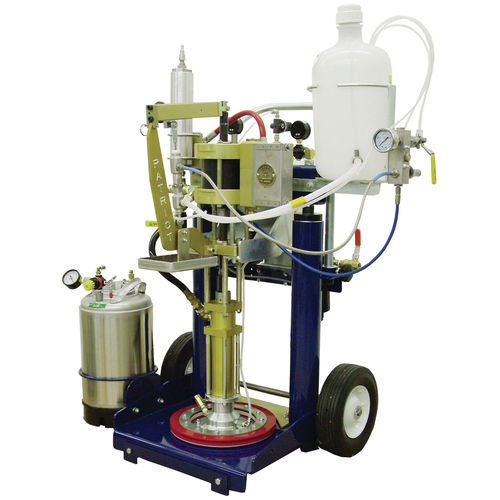

Adhesive spraying machine Putty

mobilefor shipyards

Compact system that provides precise delivery of medium viscosity putty materials Our putty systems are tried and true. Providing a precise and steady flow of material, these systems are durable and easy to maintain to create increase production efficiency. Contact us today to learn more about our putty systems. 5-GALLON Simple and Reliable Dispensing: Adjustable linkage drive allows users to set appropriate catalyst to material percentage limiting surrounding temperature concerns Mix of materials is thorough and repeatable once proper ratio is set. Compact Design: Provides users the option to use closer to production areas, limiting the need for longer hose sets and reducing waste System footprint makes it ideal for smaller manufacturers with limited production space Specifications: Output Capabilities: approximately 1 lb/min – 4 lbs/min (.45 kgs/min – 1.8 kgs/min Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Catalyst % Range: .75% – 2.5% by volume Available Pump Ratio: 23:1 Max Air Input Pressure: 100 psi (7 bar) 55-GALLON Dependable Fluid Section Design: Standard chop check fluid sections ideal for medium and high viscosity putty materials Hardened rods and cylinders provide protection against corrosion and reduce maintenance needs Versatile System: Durable linkage drive gives users ability to dispense materials with large range of catalyst percentage Applicator tips allow the system to be set for pour, spray and splatter dispensing Specifications: Output Capabilities: approximately 4 lbs/min – 16 lbs/min (1.8 kgs/min – 7.3 kgs/min) Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Catalyst % Range: .5% – 2.5% by volume
