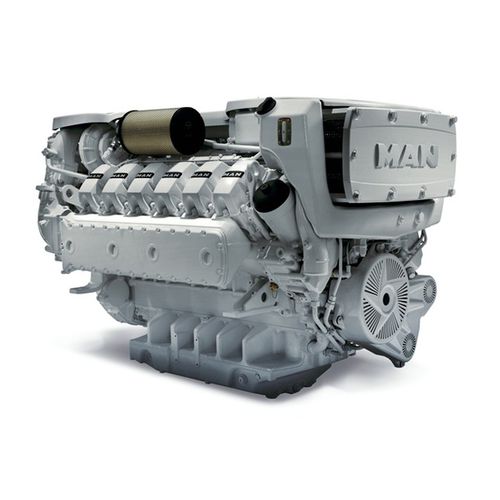

Ship engine D2862
inboardpropulsiondiesel

ship engine
ship engine
ship engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
diesel
Market
professional vessel, for ships
Technology
turbocharged, direct fuel injection, common-rail
Other characteristics
4-stroke
Power

Max.: 1,471 kW
(2,000 hp)

Min.: 735 kW
(999.3 hp)

Displacement

24 l
(6 gal)

Number of cylinders

12 unit

Engine speed

1,800 rpm, 2,100 rpm, 2,300 rpm
(11,310 rad.min-1, 13,195 rad.min-1, 14,451 rad.min-1)

Bore

128 mm
(5 in)

Stroke

157 mm
(6.2 in)

Length

1,939 mm, 2,130 mm, 2,139 mm
(76 in, 84 in, 84 in)

Width

1,153 mm, 1,157 mm
(45 in, 46 in)

Height

1,230 mm, 1,272 mm, 1,293 mm
(48 in, 50 in, 51 in)

Weight

2,270 kg, 2,420 kg
(5,004 lb, 5,335 lb)

Description

In the heavy-duty sector, the V12 engine D2862 LE44x with 735 kW (1,000 HP) is at the top of the MAN engine portfolio for workboats. The engine is available in three versions: D2862 LE441 for IMO Tier 2 emission standard, D2862 LE444 for EPA Tier 3 Commercial and D2862 LE44A for EU Stage V. By adjusting the turbocharger and the valve timing, it was possible to raise the mean pressure and increase the power by 73 kW (100 HP) compared to the original most powerful engines. The efficient MAN D2862 LE44x marine engine is based on the latest engine platform. With its increased power and a dry weight of 2,270 kg, it offers excellent power density for heavy-duty applications such as tugs and cargo vessels. With 24.24 litre displacement, 128 mm bore and 157 mm stroke, the powerful MAN marine engine achieves a maximum torque of 4,380 Nm at 1,100 to 1,600 rpm. The MAN D2862 LE44x is particularly efficient when considering the total life cycle costs: In terms of specific consumption under full load at maximum torque, the 12-cylinder engine shines with a minimum consumption of 192.3 g/kWh. An additional benefit are the extended intervals for oil change (600 hours) and basic overhaul (18,000 operating hours). Individually mounted cylinder heads also ensure easy servicing, which allows MAN’s solid engine to shine when it comes to cost-effectiveness calculations. The identical engine base positions and the same installation dimensions as with the previous series ideally simplify remotorisation projects. Compactly scaled at 2,124 mm x 1,153 mm x 1,28 mm (length x width x height), the 735 kW MAN 12-cylinder engine has an outstanding power density.
