Ship relay control module DCR100

for yachts

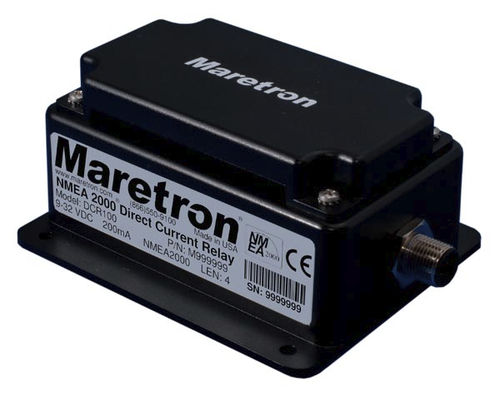

Maretron's DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10 amps. The DCR100 connects directly to an NMEA 2000® network and the associated loads can be switched while onboard using Maretron’s dedicated NMEA 2000® displays (DSM250 or DSM410) or Maretron’s N2KView® or N2KView Mobile software. Loads can also be switched remotely using Maretron’s Real Time Cloud Service. The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays. An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current. Featuers Six relays for on / off control over NMEA 2000® network Each relay capable of carrying up to 10 amps Individual relay electrical current monitoring Automatic relay over-current shutdown (shuts down at appoximately 12 amps) Automatic relay thermal shutdown (over temperature protection) Channels can be assigned as annunciators for using external lights, horns etc. when an alert is triggered.
