Marine pump MSP-500transferhydraulic systemoil
Add to favorites
Compare this product
Characteristics
- Application domain
- marine
- Applications
- transfer, hydraulic system
- Fluid
- oil
- Technology
- centrifugal, impeller
- Operation
- hydraulic, mechanical
- Material
- PTFE
- Flow rate
130 l/min
(34.34 us gal/min)- Pressure
320 bar
(4,641.2 psi)- Hose diameter
306 mm
(12 in)- Weight
75 kg
(165.3 lb)- Height
590 mm
(23 in)
Description

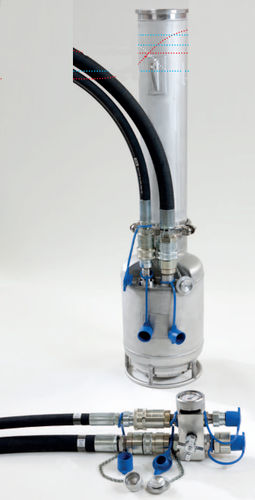

The MSP-500 is a light and compact, hydraulic drive, centrifugal salvage pump specially designed for those situations where high capacities are required. The pump impeller is keyed directly to the hydraulic motor shaft enabling a very compact design. Between the hydraulic motor and the pump impeller is a double mechanical seal arrangement to ensure a proper segregation between the hydraulic and product side. All parts exposed to the cargo are made of AISI 316L or PTFE. The pump can be used via a standard 121 /2 tank cleaning hatch and can be driven by a ship’s hydraulic system or by means of a portable powerpack.
Catalogs
MSP-500
1 Pages
