Boat network interface MD36/5/W

for AC power suppliesNMEA to 0183® PC

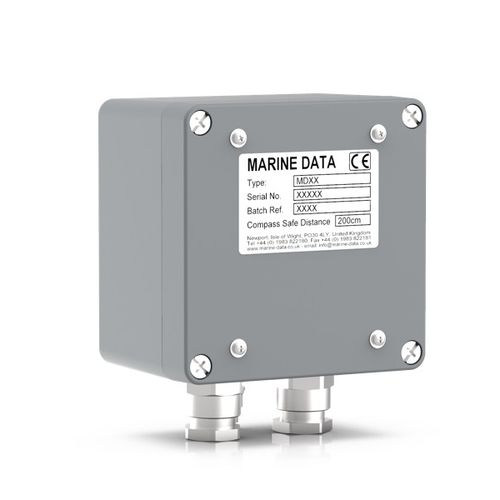

The MD36/5/W is a weatherproof, solid-state Synchro to NMEA Digital Interface. Designed as a converter of AC Synchro transformer-based transmissions of ships heading from legacy equipment, to a modern IEC61162-1 (NMEA 0183) compliant Digital Transmission format. OVERVIEW The MD36/5/W is a weatherproof, solid-state Synchro to NMEA Digital Interface. Converter of an AC Synchro-transformer based transmission of ships heading from legacy equipment, to a modern IEC61162-1 (NMEA 0183) compliant Digital Transmission format. Constructed in a robust die cast aluminium enclosure and finished in RAL7040 Window grey semi-gloss powder coat paint, the MD36/5/W is designed to complement other marine navigation equipment. Supplied for bulkhead mounting. The MD36/5/W Weatherproof Synchro to NMEA Converter from Marine Data, easy to install and simple to maintain. FEATURES IPX6 Weatherproof Marinised enclosure Converts Analogue 3-Phase Synchro to Digital NMEA 0183 Allows legacy equipment to connect to modern NMEA systems 115 V – 400 Hz Reference Voltage 90 V per phase Synchro Low Power Consumption Compact and Robust APPLICATIONS The MD36/5/W is suitable for converting a three-phase synchro transmission format to a digital NMEA 0183 (IEC61162 1) transmission format. Useful for retro-fitting legacy systems with modern equipment requiring a digital transmission of ships heading. Typically suited for installing in wet environments
