Ship repeater MD67ROT

for compassesanalog

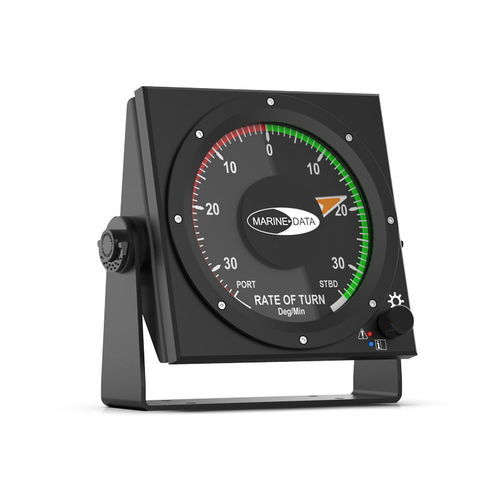

The MD67ROT is a weatherproof, NMEA-based Rate of Turn Indicator displaying Rate in degrees per minute. Housed in a robust, compact aluminium enclosure which is fully sealed to IEC 60945 Exposed Area Classification for external or internal use, and is ideal for any vessel. The MD67ROT provides a clear and easy to read 118 mm diameter analogue dial display graduated in 1 degree per minute rate increments. Rate range: Up to 30 degrees per minute to Port and Starboard. It features a tough polycarbonate faceplate and rotary encoder control for varying the background and pointer illumination. May be either bulkhead or panel mounted. Finished in Jet Black (RAL 9005) Fine-texture Powder Coat to complement other marine navigation equipment. The MD67ROT from Marine Data: flexible in application, easy to install and simple to maintain. FEATURES Weatherproof Marinised Rate of Turn Indicator Rate of Turn up to 30°/min Clear and Easily Readable Dial Display Panel or Bulkhead Mounted Rotary Dimmer with Push Control Local and Remote Dimming Control Digital NMEA 0183 Fully sealed to IEC 60945 Exposed Area Classification APPLICATIONS External use on a seagoing vessel To display Rate of Turn (ROT) data transmitted from NMEA 0183 compatible marine equipment at a convenient location
