Floating dock STRONG
mooringfor marinasfor harbor

Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor
Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor
Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor - image - 2
Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor - image - 3
Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor - image - 4
Floating dock - STRONG   - Martini Alfredo - mooring / for marinas / for harbor - image - 5
Add to favorites
Compare this product


Characteristics

Type
floating
Use
mooring
Applications
for marinas, boat, for harbor
Material
teak
Other characteristics
heavy-duty
Length

Max.: 12.4 m
(40'08" )

Min.: 6.4 m
(20'11" )

Width

2.4 m, 2.7 m, 3.2 m
(7'10" , 8'10" , 10'05" )

Freeboard

60 cm
(24 in)

Description

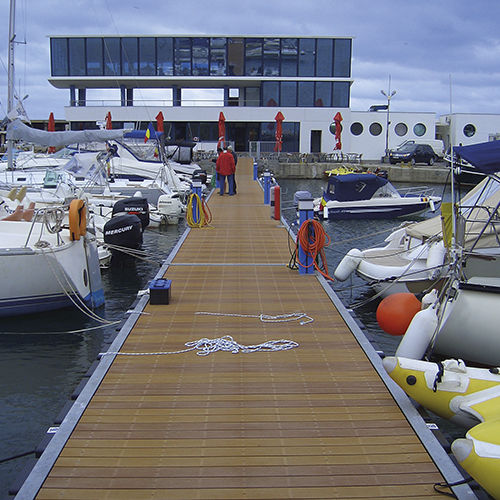

A series of extreme robust piers, expressly designed by Martini Marinas for heavy-duty boat mooring. In fact, every construction detail is designed to guarantee maximum resistance, safety and reliability even in the most complex meteorological situations. GUARANTEE OF TRANQUILITY All Martini Marinas floating modules are made according to the AIPCN regulation for the pleasure harbours. Martini Alfredo S.p.A. jetties are designed with provision for the installation of HDPE or stainless steel pedestals (water/light). The steel frame consists of IPE 240 beams, UNP 240 heads, transversal profiles and diagonal stiffening crossbeams. Each frame is equipped with eyebolts, consisting of Ø 35 mm dia. solid steel rod, all properly protected from the marine corrosion by hot dip zinc-plated process in compliance with EN ISO 1461 standard. Floating elements made of polyolefin resin ensure flotation and the floating modules are equipped with double rows of fenders on the long sides made of shockproof polyolefin resin in black so as not to foul the sides of the boats. Joint steel knees with 790 kN (80 tons) failure strength act as a joining element between the floating modules.
