Bow thruster CT 225
tunnel typefor boatselectric

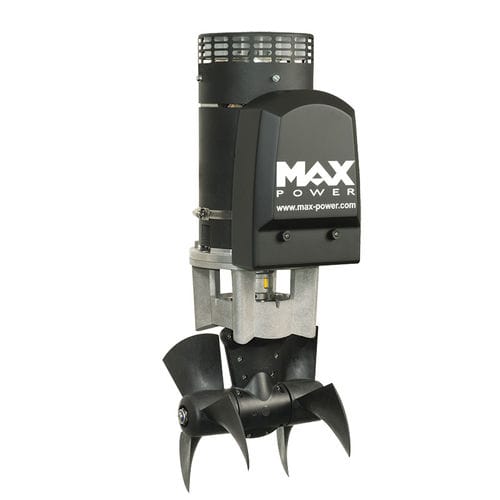

Bow thruster - CT 225 - Max Power - tunnel type / for boats / electric
Bow thruster - CT 225 - Max Power - tunnel type / for boats / electric
Bow thruster - CT 225 - Max Power - tunnel type / for boats / electric - image - 2
Add to favorites
Compare this product


Characteristics

Type
bow
Assembly
tunnel type
Application domain
for boats
Power source
electric
Other characteristics
twin-prop
Power

15 kW
(20.4 hp)

Thrust

195 kgf

Weight

37 kg
(82 lb)

Description

The CT225 is the most powerful 250mm diameter electric tunnel thruster on the market, with a thrust rating up to 200/440 (kg/lbs), and is also the largest composite thruster in the Max Power electric tunnel thruster range. Suitable for motor yachts and deep footed sailing yachts ranging from 44’-68’ this model is fitted as standard on large variety of yachts. Offering all the unique features of the range this twin propeller model is ideal where extra thrust power is required. * Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle. * Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
