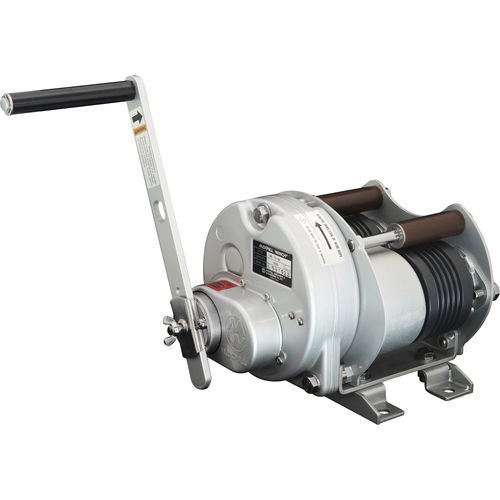

Tugboat winch ME-10-B

for shipyardstowingmanual

This winch has 2 drums that rotate the same direction at the same time with several special wire rope grooves and 2 pressure rollers attached on each drum. It provides a stable pulling power in both directions and prevents loosing the wire rope with only one main body. This winch is effective in pulling left and right directions on a horizontal plane. It is also possible to pull in one direction such as towing because the synergistic effect of the drum with special wire grooves and pressure rollers provide a firm grip on the wire rope. It is small and lightweight so it can be used in various locations. We also have two types of brake systems "B" for lifting and "L" sideways pulling. When ordering, please specify, for example, ME-5-B, ME-5-L. *Never use "L" brake for lifting vertically.
