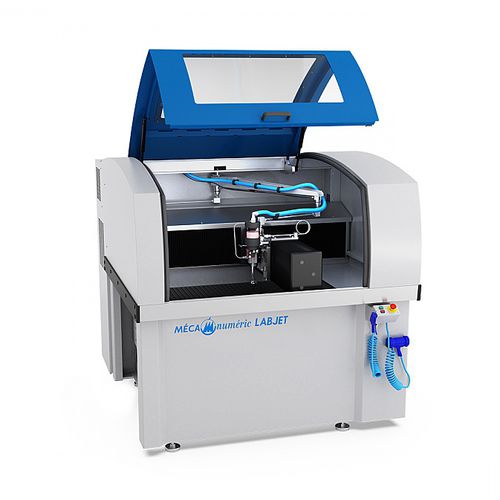

Water jet cutting machine LABJET

electricrubberplastic

Efficiency and accuracy of the water jet cutting combined in a compact size with industrial performances. The LABJET is the ideal machine to meet the requirements of the industrials regarding accuracy and precision while controlling their budget. Delivered in a versatile format. Proposed with a high-pressure pump 4136 bars of 10 to 20 HP, this machine enables the pure water jet cutting of soft materials or abrasive water cutting for hard materials. Compact and easy to use, the LABJET combines precision, power and security for the industrial works. STRENGTHS • Compact equipment with integrated high-pressure pump. • Fixed table in working area 1050 x 750 mm. • Cutting of soft materials with pure water (rubber, plastic materials, foam, leather…) and hard materials (metal, glass, stone, composites materials…) with abrasive option. • High pressure pumps 4136 bars. • Driving system with numerical control CN9000 ISO and CAM software with specific applications for water jet cutting. • 2D cutting head. • Machine completely closed, can be operated safely even in school environment or general public. FEATURES X-axis travels in mm : 1050 Y-axis travels in mm : 750 A-axis travels in mm (manual axis) : 50 Maximum dimensions of the plates in the tank in mm : 1200x1000 Overall length in mm : 1992 Overall width in mm (settling bowl not included) : 1968 Height in mm, closed cover / opened cover : 1750/2440 Weight in kg empty tank (about) : 1200
