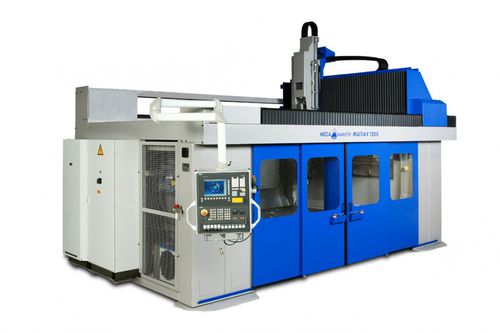

CNC machining center T SERIES

5-axisverticalfor composites

Fixed table, mobile gantry, 4 cartesian axes, 2 polar axes REFER TO THE EXEMPLES OF APPLICATIONS : Electric vehicles parts Parts for subways Parts for trams Bus parts Side windows Aircraft interior furnishing Parts for the train industry Parts for racing motorcycles MILLING EQUIPMENT OPTIMIZED FOR THE MACHINING OF BIG FORM PARTS REALIZED BY THERMOFORMING PROCESS IN FOLLOWING MATERIALS: . Plastics and composites . Synthetic resins . PU and PS foams . Wood and by-products . Aluminium . Brass and alloys TECHNOLOGY: . Transmission by ball screws on the 4 cartesian axes (X1, X2, Y, Z) . 2 rotative axes (C : +/- 200° and A : +/- 200° as per electrospindle) . Many electrospindles available Numerical control and motorization • SIEMENS SINUMERIK 840DI numerical control : X, Y, Z, C, A.axes Colour screen STN 10.4 inches OP010. Brushless motorisation type 1FK7 with numerical variators. Air-conditioned electric cabinet. • SIEMENS SINUMERIK 840D numerical control : X, Y, Z, C, A.axes Colour screen STN 10.4 inches OP010. Brushless motorisation type 1FT6 with numerical variators. Air-conditioned electric cabinet. • NUM 1050 DIGITALE numerical control : X, Y, Z, C, A.axes Flat screen TFT 12 inches. Operator console MP03. Brushless motorisation BPH with numerical variators. Air-conditioned electric cabinet. MAIN FEATURES: . Speed in mm/sec: 650 . Resolution in mm: +/- 0,05 . Repeatability in mm: +/- 0,025 à 20°C OPTIONS: . Front and back automatic doors . Mobile wall for pendular work (manual or automatic) . Vacuum table for parts or tool holding (vacuum technology by turbines with side canal or vacuum pump) . Static tool shop (6,10,15 tools)
