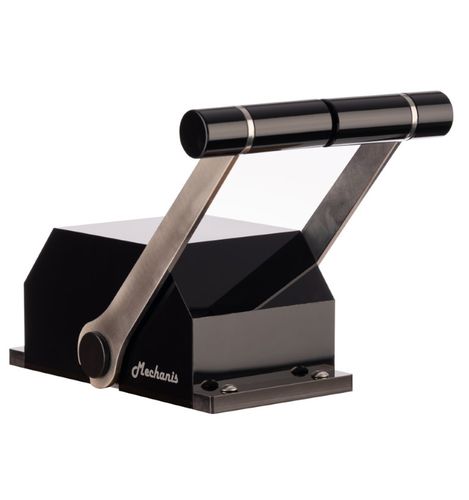

Console-mounted mechanical control unit specially designed for jet-powered boats. The control operates two cables: acceleration and deflector.
The cover can be easily removed for maintenance and inspection of the inner mechanism.
Applications
Vertical console-mounted control. Two independent levers, both with non-locking strokes. For installations of two motors or devices operated by two mechanical cables. Incorporates friction regulation and control cable lugs.
Ideal for boats with jet propellers of any size.
Features
Vertical mounting on bracket.
Simple function. Each lever an action.
Standard model for 3300/33C push-pull cables.
Available for 4300/43C and other cables on request.
Cable clamps 33C included.
Two acceleration stroke options.
Different parts of the inner mechanism in 316 and 304 stainless steel.
Screws in stainless steel 304 (A2) & 316 (A4).
Adjustment of the hardness / sensitivity of the lever.
