Lighthouse and beacon navigation light MBR600R

LEDrotatingaluminium

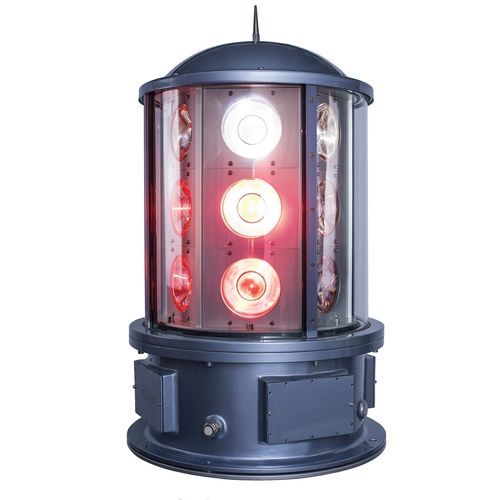

The MBR600R is a long-range rotating beacon, fitted with state-of-the-art LEDs, able to obtain a luminous range of up to 24 nautical miles. This equipment includes a redundant rotating system, our MRM 160 gearless and brushless double electronic rotating motor, one working as standby of the main one. This feature lends it a great reliability and availability. High-quality and resistant manufacturing materials, such as glass and marine aluminium, complete a watertight beacon easy to install and with minimum maintenance. All this provides an estimated lifespan of more than 25 years under the harshest marine conditions. This beacon strictly meets IALA Recommendations. Technical specifications State-of-the-art LED technology Highest-efficiency luminous system Up to 24 nm (T=0.74), 39 nm (T=0.85) Average operation lifetime Over 25 years No lampchanger needed Redundant rotating system Made up of double electronic, gearless and brushless rotating motor High reliability and availability Rotating speed adjustable In situ from 1 to 6 rpm External control unit based on microprocessor With automatic or manual operation Status and alarms available for remote monitoring By opto-isolated signals and RS-232 serial port Short-circuit, reverse-polarity, over-temperature and transient over-voltage protections Easy access in case of maintenance or spare replacement
