Mooring buoy PBM25
polyethyleneyellowgreen

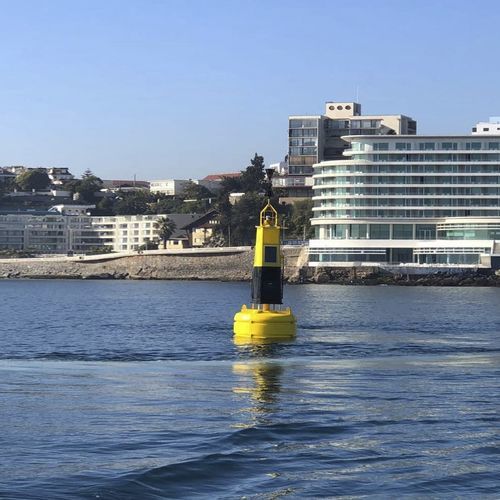

Mooring buoy - PBM25 - Mediterráneo Señales Marítimas, S.L. - polyethylene / yellow / green
Mooring buoy - PBM25 - Mediterráneo Señales Marítimas, S.L. - polyethylene / yellow / green
Mooring buoy - PBM25 - Mediterráneo Señales Marítimas, S.L. - polyethylene / yellow / green - image - 2
Mooring buoy - PBM25 - Mediterráneo Señales Marítimas, S.L. - polyethylene / yellow / green - image - 3
Add to favorites
Compare this product


Characteristics

Type
mooring
Material
polyethylene
Color
yellow, green, black
Other characteristics
connected
Diameter

2,550 mm
(100 in)

Height

4,400 mm, 5,000 mm
(173 in, 197 in)

Description

The polyethylene buoys of the PBM25 series are designed for both sheltered and open-sea waters. They are characterized by minimal maintenance. Manufactured in high quality virgin rotomoulded polyethylene, filled with closed-cell polystyrene. The polyethylene incorporates the necessary pigmentation that provides the color. It has UV filters that guarantee stable color protection throughout the service life. Reinforcements are included from the floating line to the mooring eye. They are supplied with their corresponding ballast weights. They are manufactured of four sections. Built high-quality and resistant materials, these buoys provide a long service life under harsh marine conditions. Float made of rotomoulded virgin polyethylene, 12 mm thickness The float consists of four modular replaceable sections connected by a cross-shaped stainless-steel frame. High impact resistance Float filled with closed-cell polystyrene Which prevents the absorption of water, pigmented in colour with UV protection and repellent to marine incrustations Detachable ballast weights for a greater stability Metallic parts from stainless-steel or hot-dip galvanised steel It withstands winds of 50 knots maximum and marine currents up to 6 knots Chromaticity according to the IALA Recommendations Compatible with a large variety of self-contained and marine LED lanterns Top mark and daymarks to increase buoy conspicuity at daytime Minimum maintenance Designed in accordance with the IALA Recommendations
