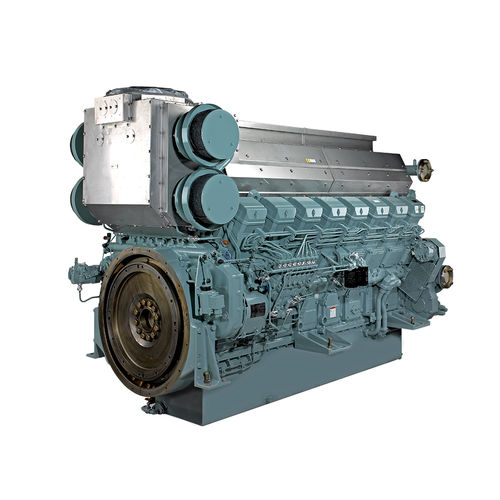

Inboard engine S16R-MPTAWauxiliarydieselelectric
Add to favorites
Compare this product
Characteristics
- Type
- inboard, auxiliary
- Power source
- diesel, electric
- Market
- professional vessel, for ships
- Technology
- turbocharged, direct fuel injection
- Cooling system
- water-cooled
- Pollution control standard
- Tier 2
- Other characteristics
- for generator sets, 4-stroke
- Power
1,120 kW, 1,500 kW, 1,536 kW, 1,690 kW
(1,522.8 hp, 2,039.4 hp, 2,088.4 hp, 2,297.8 hp)- Displacement
65 l
(17 gal)- Number of cylinders
16 unit
- Engine speed
1,200 rpm, 1,500 rpm, 1,800 rpm
(7,540 rad.min-1, 9,425 rad.min-1, 11,310 rad.min-1)- Bore
170 mm
(6.7 in)- Stroke
180 mm
(7.1 in)- Length
2,971 mm
(117 in)- Width
1,585 mm
(62 in)- Height
1,960 mm
(77 in)- Weight
6,780 kg
(14,947 lb)
Description
The S16R-MPTAW engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels.
Benefits
Reliable
Compact in size
Economical fuel consumption
Commonality of parts across the MHIET engine models, simplifies spare part management
Applications
Cruisers
Ferries
Offshore
Cylinder configuration - 16/60°V
Flywheel and housing - SAE 21 / SAE 00
Compression ratio - 14.5:1
Cooling method - separate high and low temperature cooling circuit; charge air cooler by closed freshwater system controlled by thermostat (intercooler)
