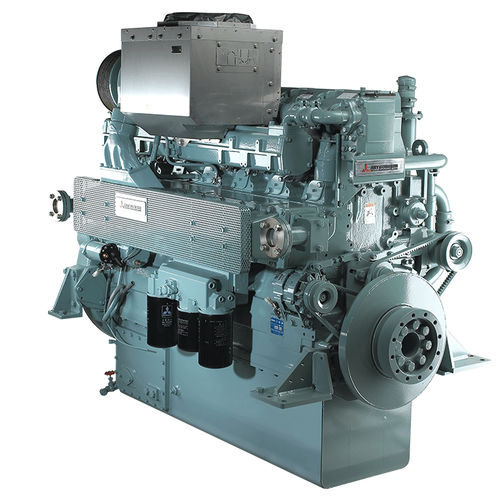

Inboard engine S6R-MPTAWauxiliarydieselprofessional vessel
Add to favorites
Compare this product
Characteristics
- Type
- inboard, auxiliary
- Power source
- diesel
- Market
- professional vessel, for ships
- Technology
- turbocharged, direct fuel injection
- Cooling system
- water-cooled
- Pollution control standard
- Tier 2
- Other characteristics
- for generator sets, 4-stroke
- Power
545 kW, 577 kW, 635 kW
(741 hp, 784.5 hp, 863.4 hp)- Displacement
25 l
(7 gal)- Number of cylinders
6 unit
- Engine speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Bore
170 mm
(6.7 in)- Stroke
180 mm
(7.1 in)- Length
1,786 mm
(70 in)- Width
1,220 mm
(48 in)- Height
1,650 mm
(65 in)- Weight
2,830 kg
(6,239 lb)
Description
The S6R-MPTAW engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels.
Benefits
Reliable
Compact in size
Economical fuel consumption
Commonality of parts across the MHIET engine models, simplifies spare part management
Applications
Ferries
Inland
Tanker
Flywheel and housing - SAE 18 / SAE 00
Compression ratio - 14.5:1
Cooling method - separate high and low temperature cooling circuit; charge air cooler by closed freshwater system controlled by thermostat (intercooler)
