Video multiplexer 907V

fiber opticsfor seabed interventions

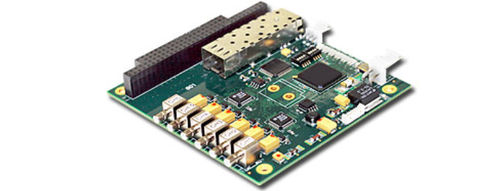

The 907V Video Multiplexer provides digital transmission over a singlemode optical fiber for 6 high quality video channels (NTSC/ PAL, RGB, Y/C, YPrPb formats) in a single PC/104 form-factor card. The 907V may be configured to operate on a single uplink wavelength in video-only mode or with an uplink and downlink wavelength to support model 907 expansion cards with bidirectional data channels. Expansion cards may be stacked on the motherboard to add up to 48 data channels in a variety of formats, including RS-232, RS-485/ 422, TTL, Ethernet, CAN Bus, analog sonar, hydrophone, audio, and Tritech ARCNET. Depending on transceiver options, optical power budgets are typically 20-26 dB with 10 km or more of singlemode fiber. Diagnostics are available as on-board LEDs for video and optical link status and as an optional serial link. Features Highest density of high quality video channels available in PC/104 size Video-only mode operates on a single wavelength Compatible with 907-DIAG-E diagnostics card and Graphical User Interface (GUI) software Compatible with existing 907 expansion cards and media converters Interchangeable SFP transceiver
