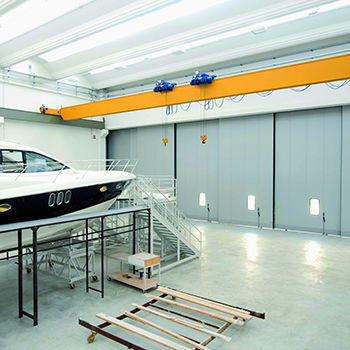

Shipyard door

slidingsound reductiongarage

The sliding door with one or more Leaves, superimposed or opposed, is the ideal solution for large openings. Manual or motorised, it has excellent robustness and maximum functionality: this is synonymous with a guarantee. TECHNICAL PRODUCT INFORMATION The panel is made with a thickness of 52 mm with a height of 6 Mt. With 82 mm panel it is possible to realize doors 10 Mt high, beyond this dimension DOORS with special supporting structures are designed and realized. Depending on the size of the wall compartment, it is also possible to insert several Visual lights s of different sizes as well as pedestrian doors. In large sliding doors, the running wheels play a fundamental role: they are the components that enable them to function properly. These accessories are manufactured by us with special care and high quality materials. Fields of application with temperatures between +4° C and +40° C CE marking EN 13241-1 (CPD), wind resistance class 3 Acoustic isolation UNI EN 717-1; R=28dB Thermal transmittance according to standard 13241-1 U=1.6W / m²K Optionals: Motors according to current standards Pedestrian door with threshold (wicket door) Visual lights with safety glass Perimeter padding External tower bolt with lock and lever Ventilation grids Support beams Fixed side and top panels Prepainted colours : B.co/similar grey RAL 9002, Aluminium white RAL 9006, Aluminium grey RAL9007, Fire red RAL 3000, Moss green RAL 6005, Gentian blue RAL 5010, Pure white RAL 9010, Traffic white RAL 9016, Earth brown RAL 8028, Anthracite grey RAL 7016.
