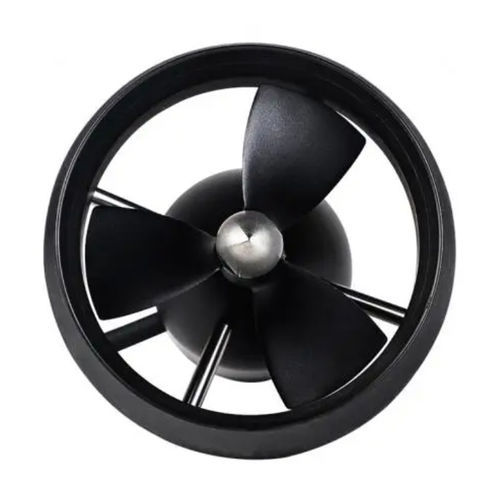

Azimuth thruster SW17
externalfor boatsfor ROV

Azimuth thruster - SW17 - Nanchang Sanrui Intelligent Technology LLC - external / for boats / for ROV
Azimuth thruster - SW17 - Nanchang Sanrui Intelligent Technology LLC - external / for boats / for ROV
Azimuth thruster - SW17 - Nanchang Sanrui Intelligent Technology LLC - external / for boats / for ROV - image - 2
Azimuth thruster - SW17 - Nanchang Sanrui Intelligent Technology LLC - external / for boats / for ROV - image - 3
Azimuth thruster - SW17 - Nanchang Sanrui Intelligent Technology LLC - external / for boats / for ROV - image - 4
Add to favorites
Compare this product


Characteristics

Type
azimuth
Assembly
external
Application domain
for boats, underwater, for ROV
Power source
electric
Power

870 W
(1.2 hp)

Thrust

17 kgf

Weight

775 g, 1,350 g
(27 oz, 48 oz)

Description

• Rated Voltage: 48V • Maximum Bollard Thrust≥17 kgf • Aluminum Alloy Casting • To the Depth of 30 Meters Underwater • Specifically for UVAs and Handheld Thrusters • Customizable Drag Reduction Cone CubeMars has newly launched the SW and DW series underwater thrusters, designed to provide clean, convenient, and efficient propulsion power for surface and underwater unmanned vehicles. The SW and DW series thrusters feature a sealed design, with critical components housed within a sealed casing, effectively preventing damage from sand and other debris. This design enables them to handle complex underwater environments, meeting the requirements for long life, corrosion resistance, and maintenance-free operation. The thrusters incorporate comprehensive protection, while also addressing the issue of heat dissipation during operation. They are filled with highly efficient thermal conductive materials, allowing them to dissipate heat through water immersion, achieving efficient performance. The SW17 thrusters' sealed casings are sturdy and durable, with a maximum operating depth of 30 meters and a maximum bollard thrust ≥17 kgf, making them suitable for various levels of ROVs, unmanned boats, surfboards, and other surface and underwater applications. Utilizes threaded connections and two-stage independent sealed compartments featuring low-resistance dynamic sealing to prevent sediment intrusion into the motor compartment, needing no maintenance Main shaft sealing method Low-resistance dynamic seal Rated voltage 48V Main body structure Two-stage sealing chamber Applicable water depth 0-30M Driver External Material of the nozzle POM
