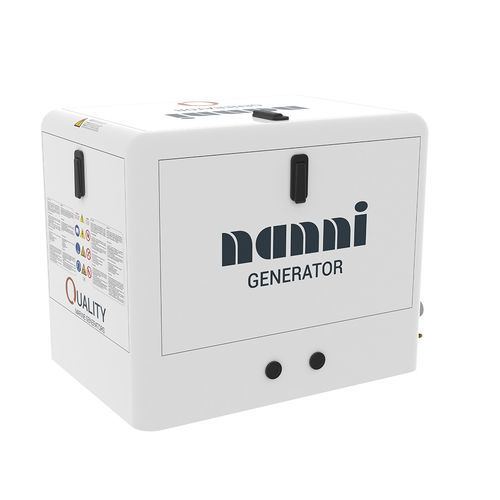

Diesel generator set Q500
for boats50 HzIP23

diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Frequency
50 Hz
Protection class
IP23
Options and accessories
soundproofed
Output power

5 kW
(6.8 hp)

Voltage

230 V

Rotational speed

3,000 rpm
(18,850 rad.min-1)

Displacement

475 cm³
(16 US fl oz)

Number of cylinders

2 unit

Length

650 mm
(25.6 in)

Width

480 mm
(18.9 in)

Height

530 mm
(20.9 in)

Net weight

128 kg
(282 lb)

Description

ENGINE BASE „ 4 strokes Diesel engine tested in all marine or industrial applications throughout the world. „ Engine block in cast iron type tunnel and timing gear. Injection and combustion system „ The Super Glow System comes as standard equipment to start the engine in cold temperatures. „ The E-TVCS injection system produces an ideal air/fuel mixture by creating three vortexes in the combustion chamber. The combustion efficiency is improved,resulting in low fuel consumption. Cooling system „ Cooling is ensured by heat exchange between coolant and seawater in an heat exchanger, or via a Keel Cooling system. „ Seawater pump with rubber impeller. Generator „ Delivering a continuous power of 4.6 kW and able to provide up to 5 kW STANDARD EQUIPMENT „ Extension delivered by meter „ Closed cooling with heat exchanger „ Wet exhaust „ 12V Single-pole electrical system „ Safety shutdowns on low oil pressure and high coolant temperature „ Eco GE panel „ Rubber mounts „ Oil drain pump mounted on the engine Optional equipment „ Seawater hoses „ Seawater filter „ Siphon breaker „ Fuel feed system piping „ Exhaust system „ Fuel prefilter „ Additional electric fuel feed pump INSTRUMENT PANEL ECO GE „ Start and stop buttons „ Low oil pressure warning light „ Coolant temperature warning light „ Preheat warning light „ Battery charge warning light
