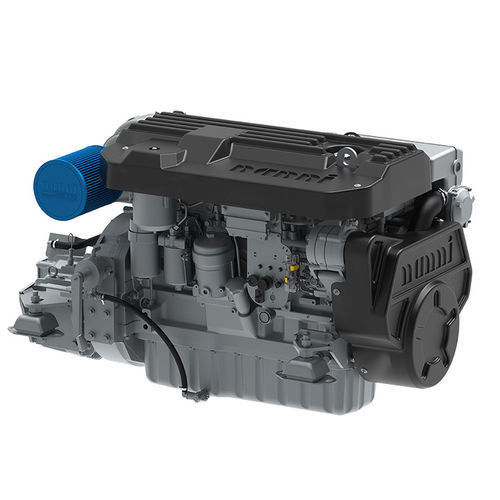

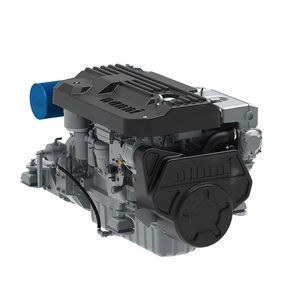

Inboard engine N9.430 CR2
dieselboatingprofessional vessel

Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 2
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 3
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 4
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 5
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 6
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 7
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 8
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 9
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 10
Inboard engine - N9.430 CR2 - Nanni Industries - diesel / boating / professional vessel - image - 11
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, common-rail
Engine type
in-line
Cooling system
water-cooled
Lubrication
full-flow oil filter
Rating
rating 3
Pollution control standard
Tier 3
Other characteristics
4-stroke
Power

431 ch
(431 hp)

Displacement

9 l
(2 gal)

Number of cylinders

6 unit

Engine speed

2,300 rpm
(14,451 rad.min-1)

Max. installation angle

12 °

Bore

118.4 mm
(4.7 in)

Stroke

136 mm
(5.4 in)

Length

1,228 mm
(48 in)

Width

951 mm
(37 in)

Height

948 mm
(37 in)

Weight

948 kg
(2,090 lb)

Description

ENGINE BLOCK „ Replaceable wet-type cylinder liners „ 4 Valves per cylinder „ Watercooled exhaust manifold FUEL SYSTEM „ Primary & secondary fuel filter „ Common Rail fuel injection system LUBRICATION SystEm „ Replaceable full-flow oil filter „ Oil dipstick „ Oil cooler COOLING SYSTEM „ Closed cooling with heat exchanger „ Gear driven self-priming raw water pump „ Coolant circulating pump „ Water cooled exhaust elbow ELECTRICAL SystEm & Instrumentation „ 24 V / 100 A alternator „ 24 V starter motor „ Complete instrumentation including key switch and alarms „ Extension cable harness with plug-in connection AIR INTAKE „ Water cooled turbocharger „ Air-to-seawater aftercooler OTHER FEATURES „ Flywheel SAE 1 „ Flexible engine mounting „ Damper pulley OptionAL SYSTEMS & accessorIes „ Keel cooling adaptation „ Dry exhaust elbow „ Complete marine propulsion systems „ Marine transmission adaptation kits „ Throttle and shift controls „ Additional instrumentation, Flying bridge extension harness „ Rigid engine mounting „ Power take off „ Type approval „ Flywheel SAE 2 RATINGS „ Up to 4000 annual operating hours „ Load factor up to 50% „ Full power for no more than 4 hours out of each 12 hours of operation. The remaining operation time must be at or below cruising speed. TRANSMISSIONS „ Contact your Nanni representative for more details and availability about transmissions types and models range
