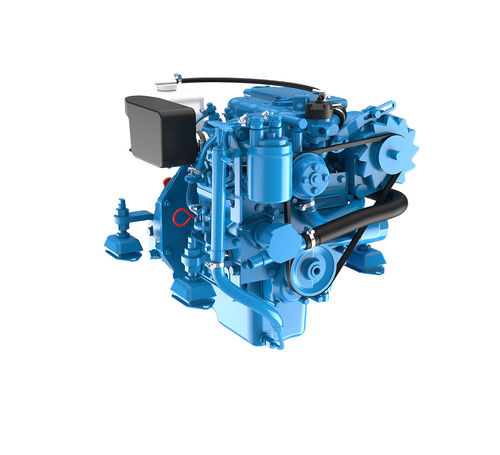

Inboard engine N3.21
dieselboatingprofessional vessel

Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 2
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 3
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 4
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 5
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 6
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 7
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 8
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 9
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 10
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 11
Inboard engine - N3.21  - Nanni Industries - diesel / boating / professional vessel - image - 12
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
mechanical fuel injection, atmospheric
Engine type
in-line
Cooling system
water-cooled
Lubrication
full-flow oil filter
Rating
rating 5
Pollution control standard
Tier 3
Other characteristics
4-stroke
Power

19.6 ch
(19.6 hp)

Displacement

721 cm³
(24 US fl oz)

Number of cylinders

3 unit

Engine speed

3,600 rpm
(22,619 rad.min-1)

Max. installation angle

15 °

Bore

67 mm
(2.6 in)

Stroke

68 mm
(2.7 in)

Length

578 mm
(23 in)

Width

473 mm
(19 in)

Height

506 mm
(20 in)

Weight

97 kg
(214 lb)

Description

ENGINE BLOCK 3 Cylinders in line Gear-driven valve train Water cooled exhaust manifold FUEL SYSTEM Mechanical governor Cam driven in-line injection pump Fuel feed pump with hand primer Fuel filter LUBRICATION SYSTEM Replaceable full-flow oil filter Oil dipstick Oil cooler COOLING SYSTEM Closed cooling with heat exchanger Gear driven self-priming raw water pump Coolant circulating pump Water cooled exhaust elbow ELECTRICAL SYSTEM & INSTRUMENTATION 12V Electrical system 12 V / 70 A alternato r Electric starter motor Electric stop function Instrumentation panel, including Start/Stop, tachometer & alarms Extension cable harness with plug-and-play AIR INTAKE Mounted air cleaner OTHER FEATURES Flexible engine mounting Bracket for control cables OPTIONAl EQUIPMENTS & ACCESSORIES Keel cooling adaptation Complete marine propulsion systems Throttle and shift controls Additional instrumentation, Flying bridge extension harness Polyester frame (Sail Drive version) Engine mounting adaptation Two pole electrical system Water boiler systems Stuffing box connections Complete fuel systems Complete exhaust systems RATINGS Up to 1000 annual operating hours Load factor up to 35%„Full power for no more than 30 minutes out of each 8 hours of operation. The remaining time must be at, or below cruising speed TRANSMISSIONS SHAFT LINE TMC40 TTMC35A SAIl DRIVE Sail Drive SP60 Contact your Nanni representative for more details and availability about transmissions types and models range
